Pumps
| Description | Product images |
|---|---|

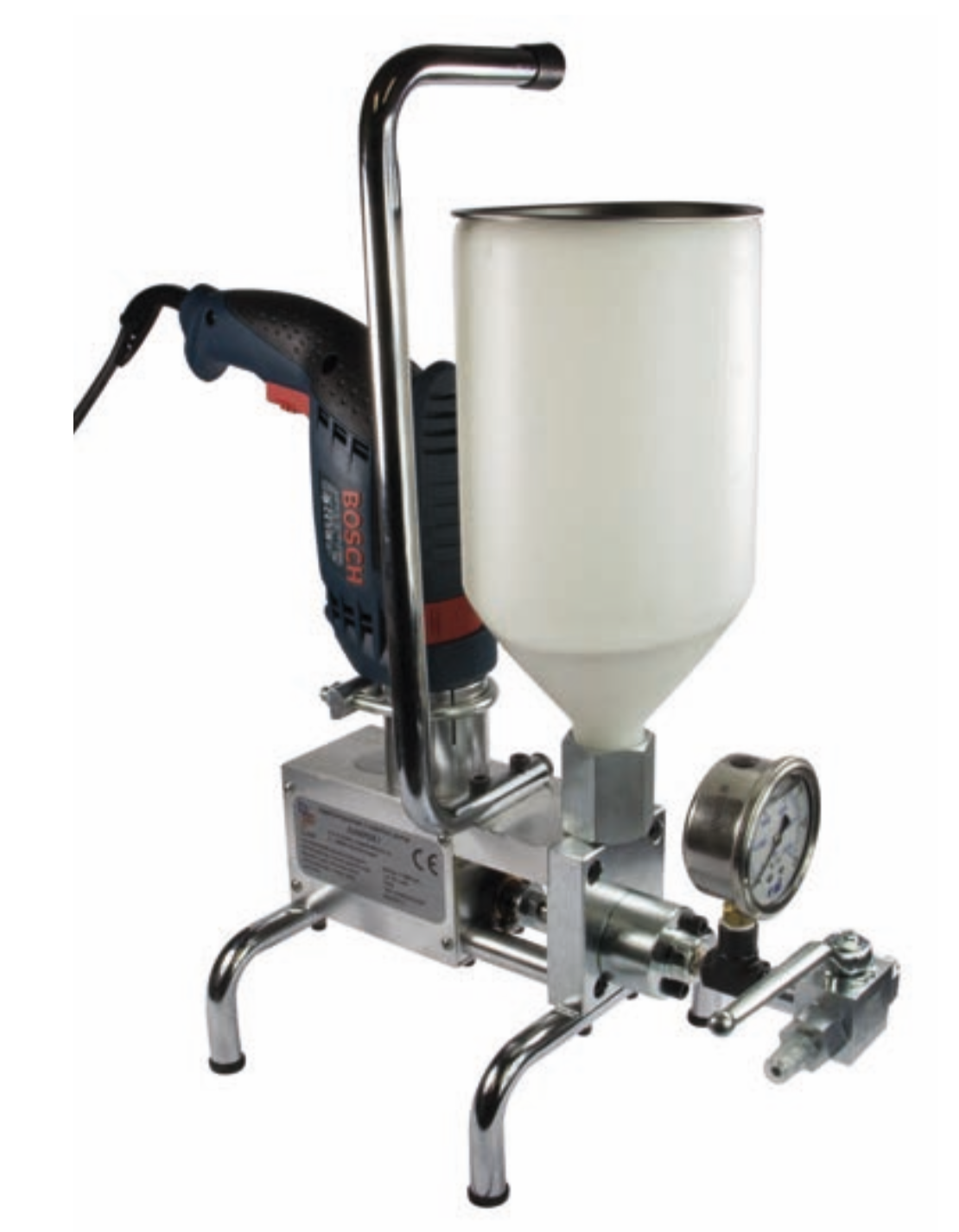

b & m Vertriebs-GmbH Electric high-pressure pump for one- and two-component materials. Quality pump at a reasonable price Complete, ready to use Suitable for smaller jobs with high-pressure injection of eg epoxy and polyurethane TECHNICAL DATA: MOTOR: 230 V 50 Hz, 600W Max pressure: 400 bar Max capacity (free flow) 1 l / min Hose length: 2m Weight approx. 4 kg Read the brochure here. Watch the video here. |  |
| Here you will find the complete catalog of all the pumps that b & m runs. You can order pumps or ask questions about them by contacting us by phone or email. Click here to view the entire catalog. |  |

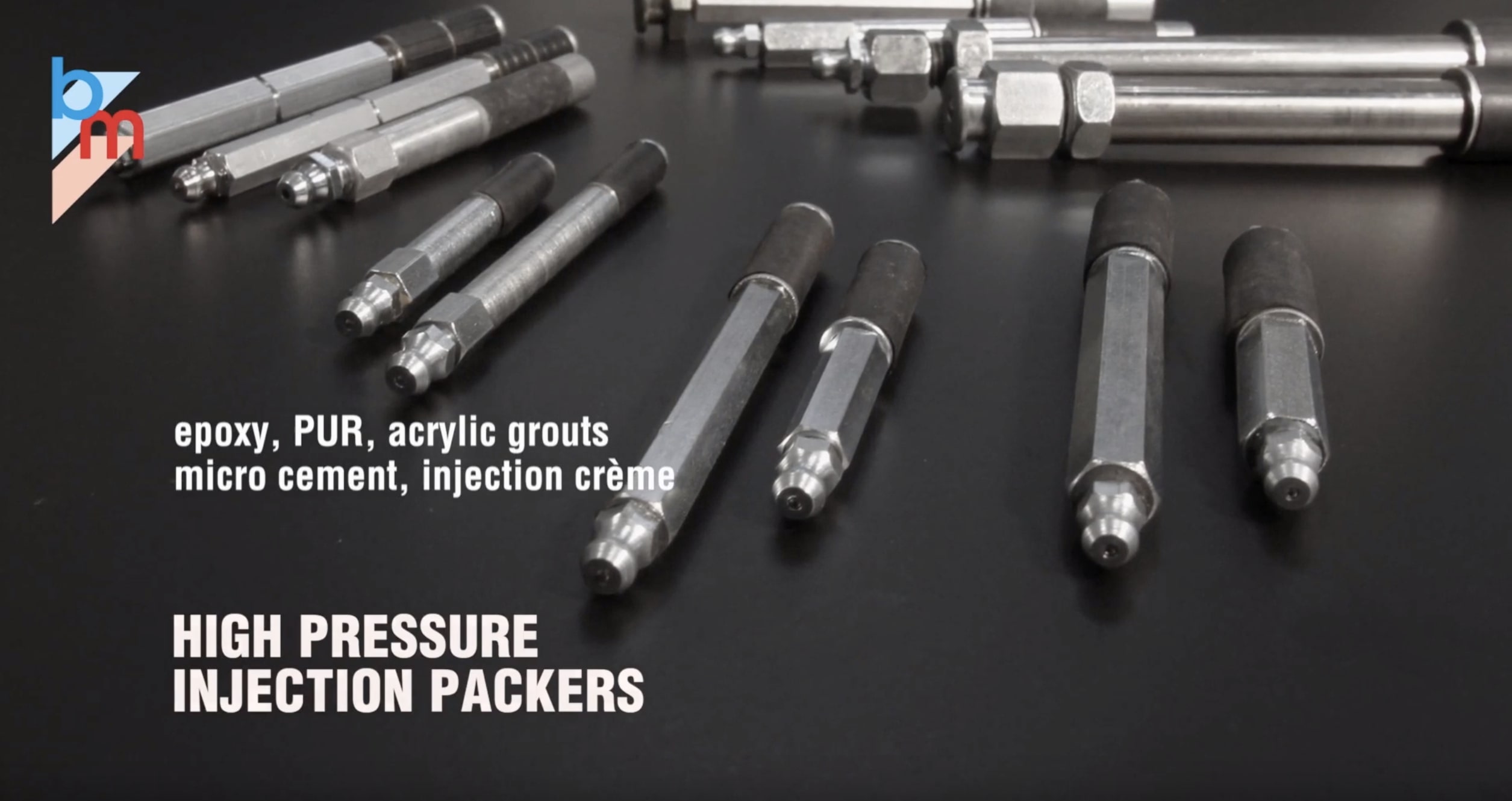

Injection packers Watch video here |  |

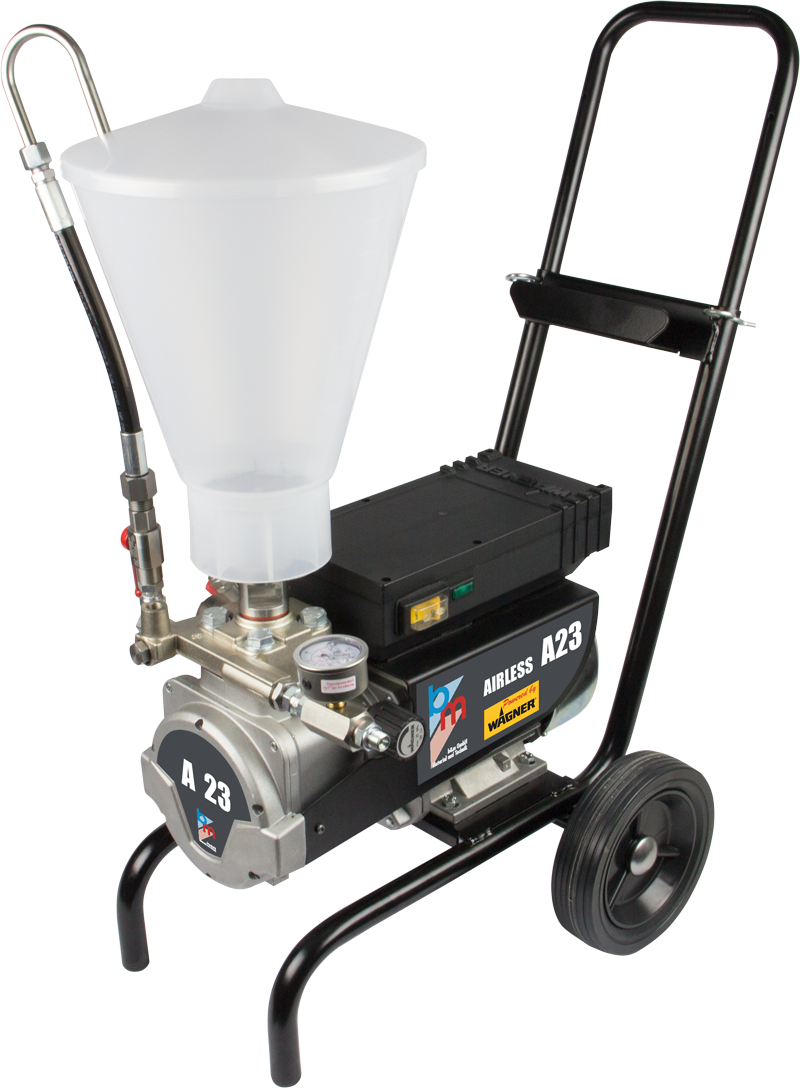

b & m A23 Electric diaphragm pump for use with i.a. paint, varnish and injection. TECHNICAL DATA: Motor: 230 V 50 Hz 1.3 kW Capacity: 2.6 liters / min. Working pressure: 0-250 bar Max. size of nozzle: 0.58 mm. NPS 1/4 " Max. liquid thickness: 20,000 mPas See brochure here. Watch the video here. |  |

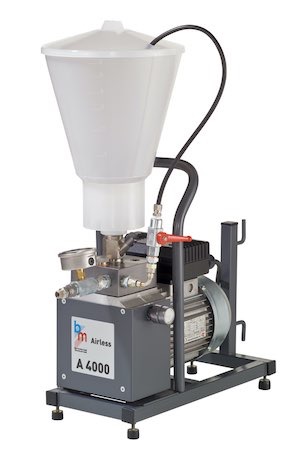

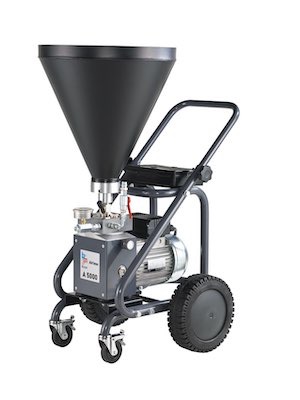

b & m Vertriebs-GmbH Electric diaphragm pump for one- and two-component materials. Specially built for professional injection of eg epoxy and polyurethane, spraying of primers, water-based paints, wood protection, dispersion paints, and varnish with flash point above + 21 C TECHNICAL DATA: Motor: 230 V 50 Hz 0.75 KW Capacity: 2.5 liters / min. Max working pressure: 220 bar Max hose length: 20 m Can also be delivered with a practical trolley. Can be delivered with tank or suction equipment. Weight approx. 25 kg Watch the video here. |  |
b & m Vertriebs-GmbH Electric diaphragm pump for one- and two-component materials. Specially built for professional injection of eg epoxy and polyurethane, spraying of primers, water-based paints, wood protection, dispersion paints as well as varnish with flash point above + 21 o C TECHNICAL DATA: MOTOR: 230 V 50 Hz 1.1 KW Capacity: 4.5 liters / min. Max working pressure: 230 bar Max hose length: 40 m Can be delivered with tank or suction equipment. |  |

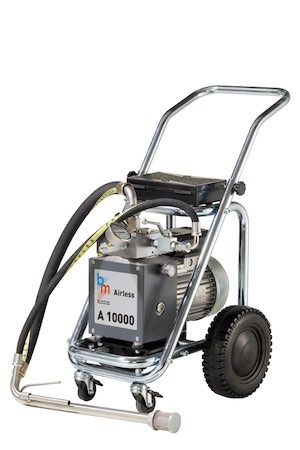

b & m Vertriebs-GmbH Electric diaphragm pump for one- and two-component materials. Specially built for professional injection of eg epoxy and polyurethane, spraying of primers, water-based paints, wood preservatives, dispersion paints and varnishes with a flash point above + 21 o C TECHNICAL DATA: MOTOR: 230 V 50 Hz 1.8 KW Capacity: 6.5 liters / min. Max working pressure: 220 bar Max hose length: 40 m Can be delivered with tank or suction equipment. |  |

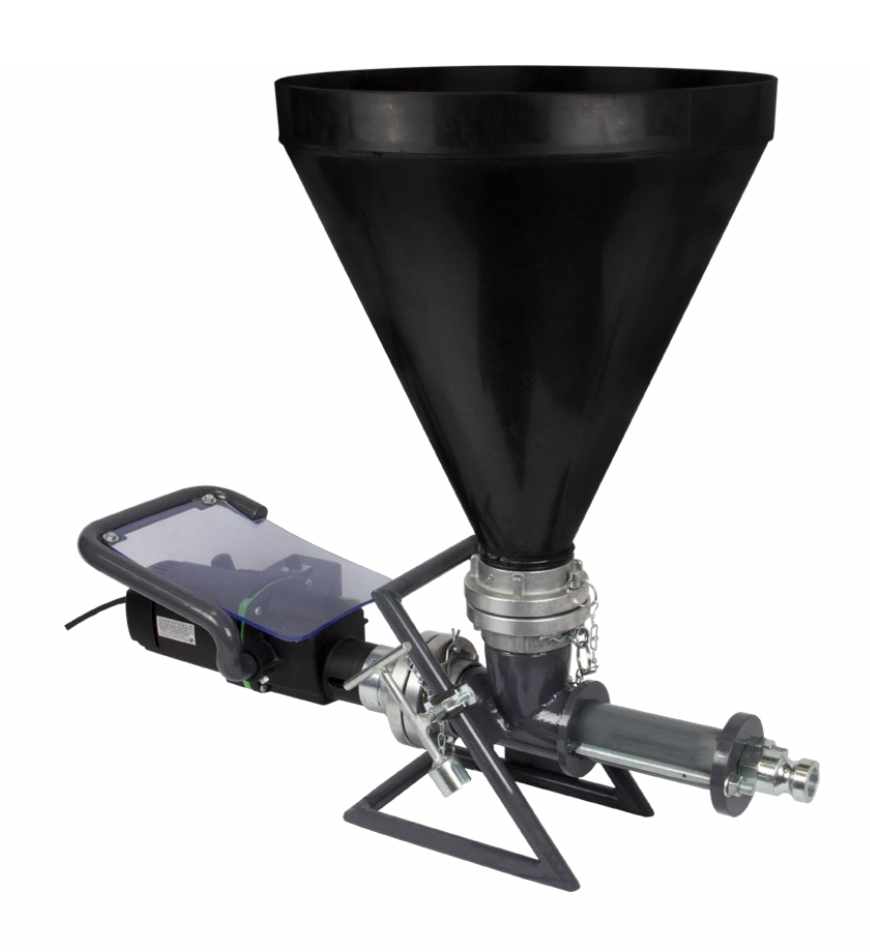

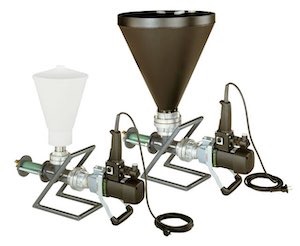

b & m Vertriebs-GmbH Electric pump with speed regulator. Specially built for pumping / spraying of: - Thick coatings / paints Impregnations - Injection pastes - Cement-based mortars Adhesives and sealants - Synthetic resins - Rubber mixtures with up to 2 mm grain size TECHNICAL DATA: MOTOR: 230 V 50 Hz 1.15 KW (requires min. 16 A fuse) Capacity: 0.5 - 12 liters / min. Max working pressure: 25 bar Max hose length: 15 m (depending on material) Nominal speed 250-580 rpm Options: Nozzles for grouting Remote control Spray gun with various nozzles (requires air compressor) Watch the video here . |  |

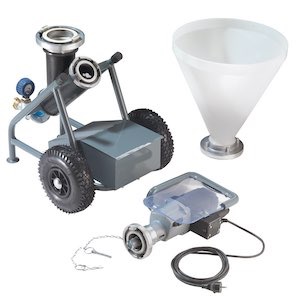

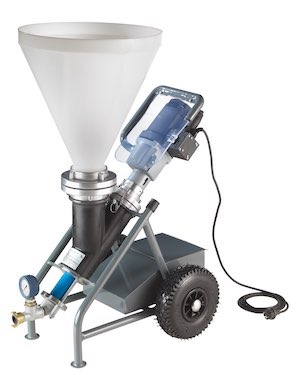

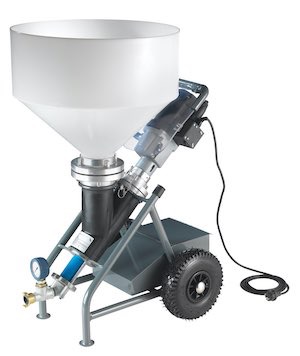

BMP 6 Video clip of bitumen membrane spraying with BMP 6 Electric pump with speed regulator. Specially built for pumping / spraying of: - Thick coatings / paints Impregnations - Injection pastes - Cement-based mortars Adhesives and sealants - Synthetic resins - Bitumen membranes - Rubber mixtures with up to 2 mm grain size TECHNICAL DATA: MOTOR: 230 V 50 Hz 1.8 KW (requires min. 16 A fuse) Capacity: 0.5 - 6.5 liters / min. Max working pressure: 25 bar Max hose length: 20 m (depending on material) Container 30 l Options: Nozzles for grouting Remote control Spray gun with various nozzles (requires air compressor) Container 60 l Watch the video here. |    |
BMP 7 Read datasheet here Electric pump with speed regulator. Specially built for pumping / spraying of: - Thick coatings / paints Impregnations - Injection pastes -Cement-based mortars Adhesives and sealants - Synthetic resins - Bitumen membranes - Rubber mixtures with up to 2 mm grain size Read instructions in Danish TECHNICAL DATA: MOTOR: 230 V 50 Hz 1.8 KW (requires min. 16 A fuse) Capacity: 0.5 - 20 liters / min. Max working pressure: 20 bar Max hose length: 30 m (depending on material) Weight: 19 kg Container 30 l Options: Nozzles for grouting Remote control Spray gun with various nozzles (requires air compressor) Container 60 l Watch the video here. |  |
b & m Vertriebs-GmbH Electric pump with speed regulator. Universal mortar pump for - Cement-based mortars (dmax 3 mm) - Microcement - Decorative plaster - Putties - Leveling masses etc. TECHNICAL DATA: - MOTOR: 230 V 50 Hz 1.5 KW - Capacity: 0.2 -18 liters / min. - Max working pressure: 30 bar - Max hose length: 20 m (depending on material) - Nominal speed 106 - 403 rpm - Container 30/60 l - Weight approx. 70 kg - Length 120 cm - Board 55 cm - Height 70 cm Options: Remote control Nozzles for grouting Spray gun with various nozzles (requires air compressor 200 - 500 l / min) |     |

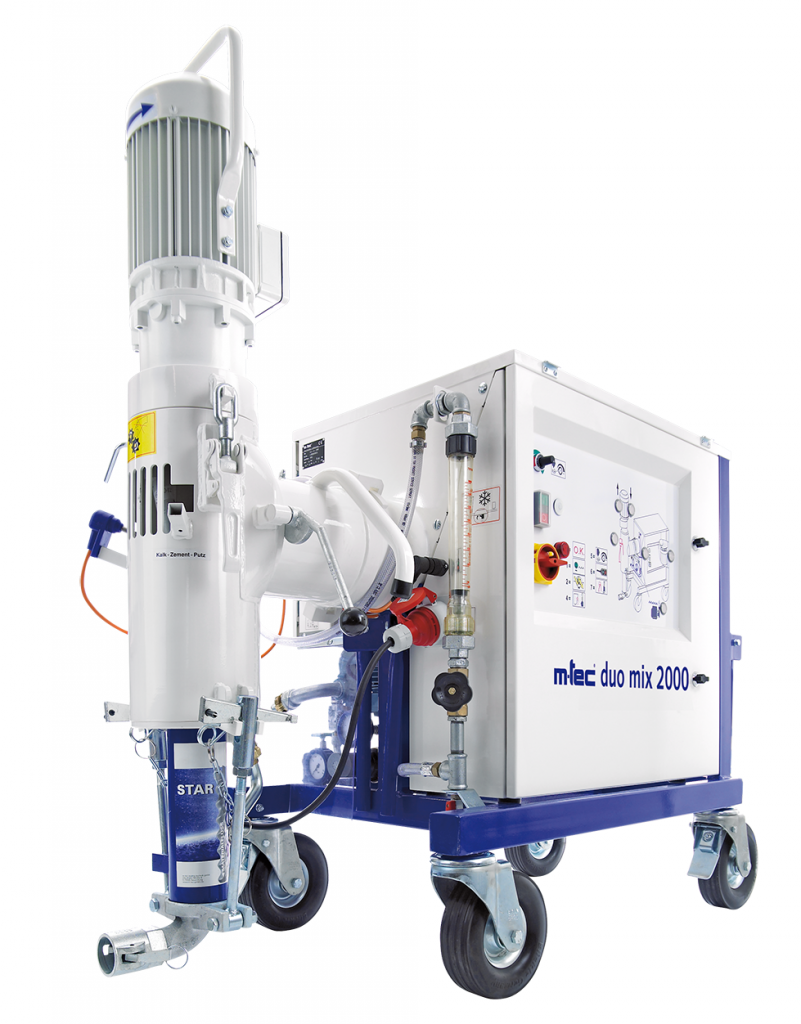

Duo-mix 2000 Super mixer and pump with patented mixing system. Extremely user-friendly with very simple troubleshooting system. Can be used for all pumpable mortars (Dmax 5 mm). Sack goods or direct filling from silo. Very powerful performance. Easy to transport and clean. Stepless speed controller. Can be delivered with remote control. TECHNICAL DATA: Capacity approx. 1-60 L / min Pump distance approx. 20 -100 m * Pump height approx. 30 m * Pump pressure approx. 30 bar Variable speed Mixer: 3 kW, 230 / 400V, 260 Rpm. mine Mixing pump: 5.5 kW, 230 / 400V, 400 - 60 rpm. mine Frequency converter 7.5 kW 400V Water pump: 0.75 kW approx. 60 l / min, max 6 bar Electrical connection 400 V 3 phase, 50 HZ 25 A Water connection ¾ ”GEKA Mine. water pressure 2.5 bar (during operation) Filling height sack item 1020 mm Weight approx. 260 kg Duo-mix 2000 can also be delivered with a compressor for spraying 1.1 kW, approx. 360 l / min, 4 bar. * (depending on material and stator / rotor) We also have pumps and mixers with larger capacities, please contact us for further information. |  |

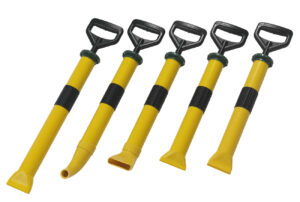

MORTAR HAND PUMPS A LITTLE STRONG HELPER Ideal for fast and accurate placement of e.g. Refractory mortar around fire doors, Expand mortar in hard-to-reach places Filling of cavities Grouting etc. The pumps can also be delivered with GEKA coupling and hose for injection. Patented seal makes it possible to use the pumps for work overhead. Read brochure here Model 1 BM13300012 long version, slot opening 18 mm, capacity 1.2 kg Model 2 BM13300016 angle 30 °, outlet dia. 24 mm, capacity 0.9 kg Model 3 BM13399915 angle 30 °, gap 18 mm, capacity 0.9 kg Model 4 BM13300010 short version, slot 10 mm, capacity 0.9 kg Model 5 BM13300011 short version, gap 18 mm, capacity 0.9 kg Model 6 BM13300016-GK angle 30 ° with hose, capacity 0.9 kg Watch the video here. |  |

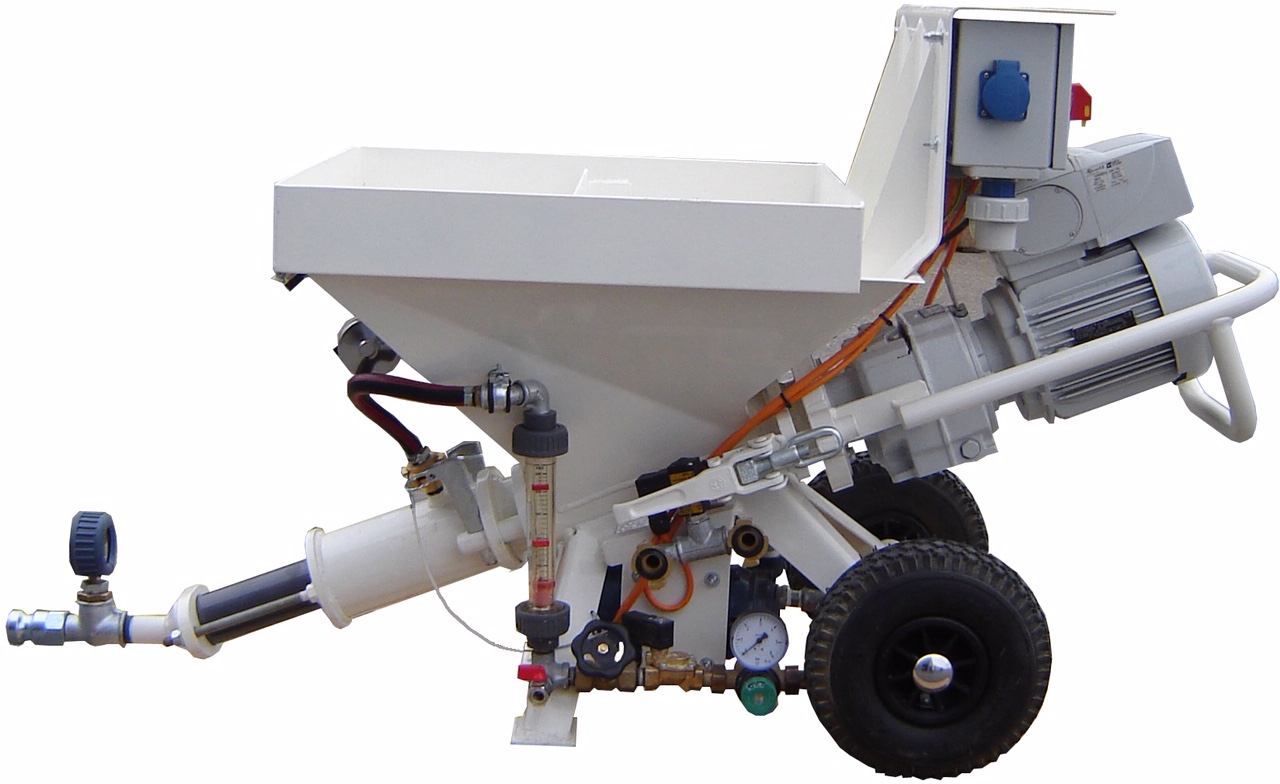

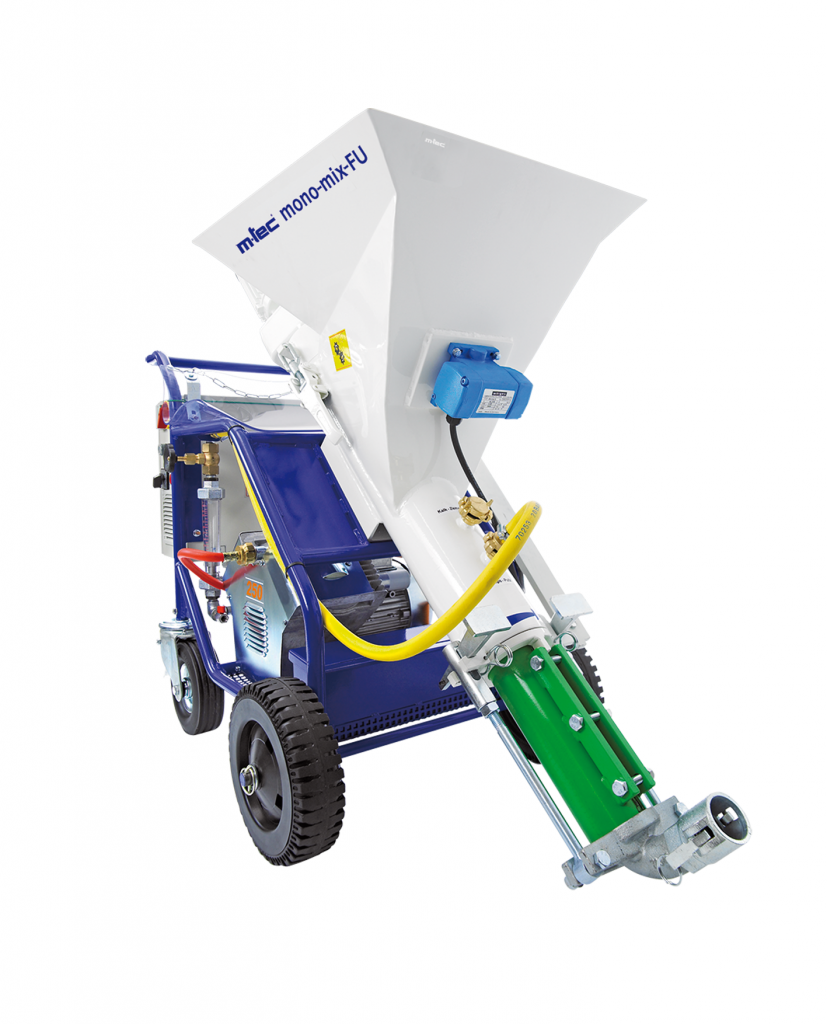

Mono-mix FU Smart and compact design. Can be used for all pumpable mortars (Dmax 3 mm). Powerful performance in relation to size. Easy to transport and clean. Stepless speed controller. Can be delivered with remote control TECHNICAL DATA: Capacity approx. 20 L / min Pump distance approx. 40 m (thin plaster) Pump height approx. 10 m (depending on material) Pump pressure approx. 20 bar Variable speed + 4 presets Motor 3 kW, 230 V, 3 phase, 50 Hz O / pr. min 280 Electrical connection 230 V 50 HZ 16 A Water connection ¾ ”GEKA Mine. water pressure 2.5 bar (during operation) Filling height sack item 1000 mm Weight approx. 140 kg Mono-mix FU can also be delivered with a compressor for spraying 1.1 kW, approx. 250 L / min, 4 bar. Watch the video here. |  |
BMP 18 Mini A strong mortar pump for building and renovation with 230V for grain sizes up to 3 mm and max. capacity 16 l / min with integrated vibrator plate and compressed air control. For use in spraying, an additional compressor is required. Required air supply in material from 200-500 l / min. Great option for varied output power with a voltage meter when using premixed materials. TECHNICAL DATA: Capacity l / min 0.2-16 l / min Transport width max 20 m Weight 114 kg 1.5 kW motor Max grain size 3 mm Voltage / frequency 230 V / 50 Hz Max working pressure 30 bar Container volume 30 l Read datasheet here |  |
COM-F COMBINED CONCRETE PUMP AND FORCED MIXER • Simple construction and design provides a high level of operational reliability. • The forced mixer provides a perfect mix regardless of material. • Easy replacement of transport screw / monopump allows COM F to be used for eg: sanding, grouting, or transporting wet materials. • Variable speed frequency converter on the pump • Easy to move • 3 models with different capacities Read data sheet here |  Tvangsblander med pumpe |
SSB 14 Syringe for dry spraying of concrete. Capacity 0.5 - 3 m3 / h. |  |

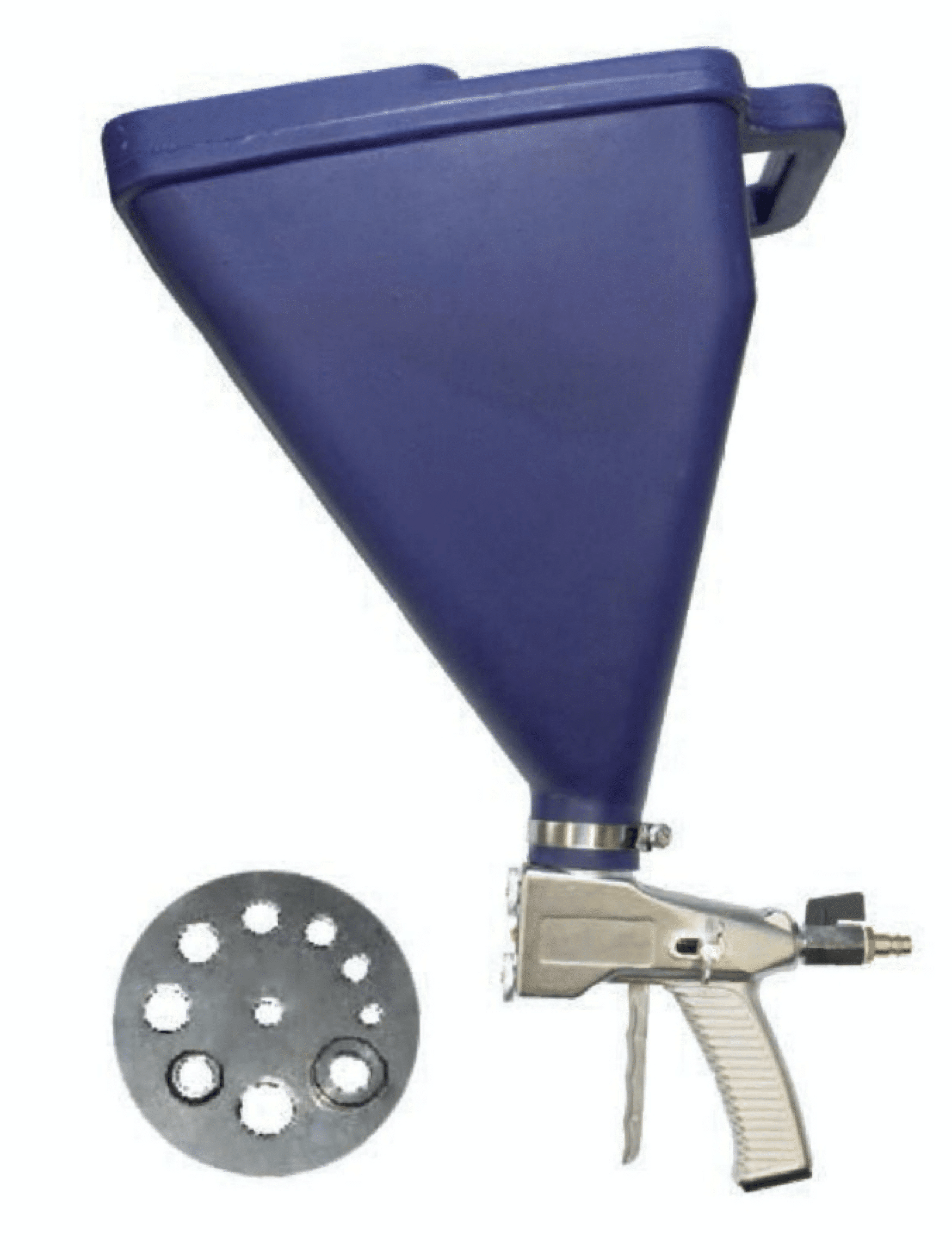

FUNNEL SYRINGE Handy and widely applicable plaster and mortar spray. Crafted in robust aluminum construction. 9-hole mouth plate with holes from 4-13 mm that are easy to adjust. Regulation of air and material supply. Capacity 6 l. Air consumption 220 l / min Recommended pressure 2-3 bar Max. grain size 6-8 mm Read brochure here |  |

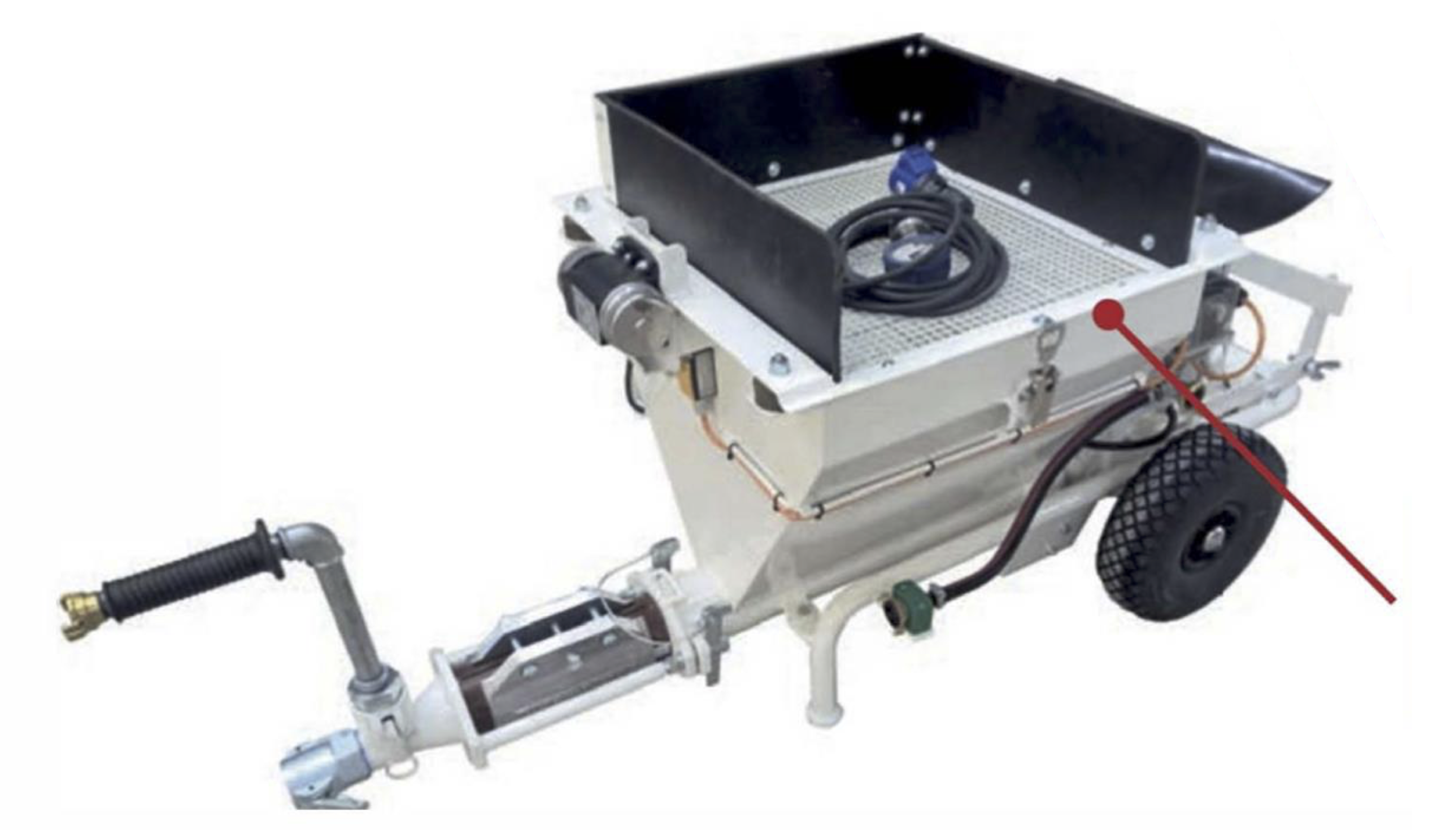

BMP 40 screw pump Widely usable screw pump for construction and renovation work with 230V for grain sizes up to 4 mm and 4 l capacity. With integrated vibration screen and air control. An additional air compressor must be used for spraying. Required air supply for materials between 200-500 l / min. Performance capacity is variable with voltage meters. Capacity (l / min): 8-40 Max. performance width: 30 m Max. performance height: 15 m Weight: 125 kg Engine: 3 kW Max. grain size: 4 mm Voltage: 230V / 16A / 50Hz Volume: 55 l Read brochure here |  |

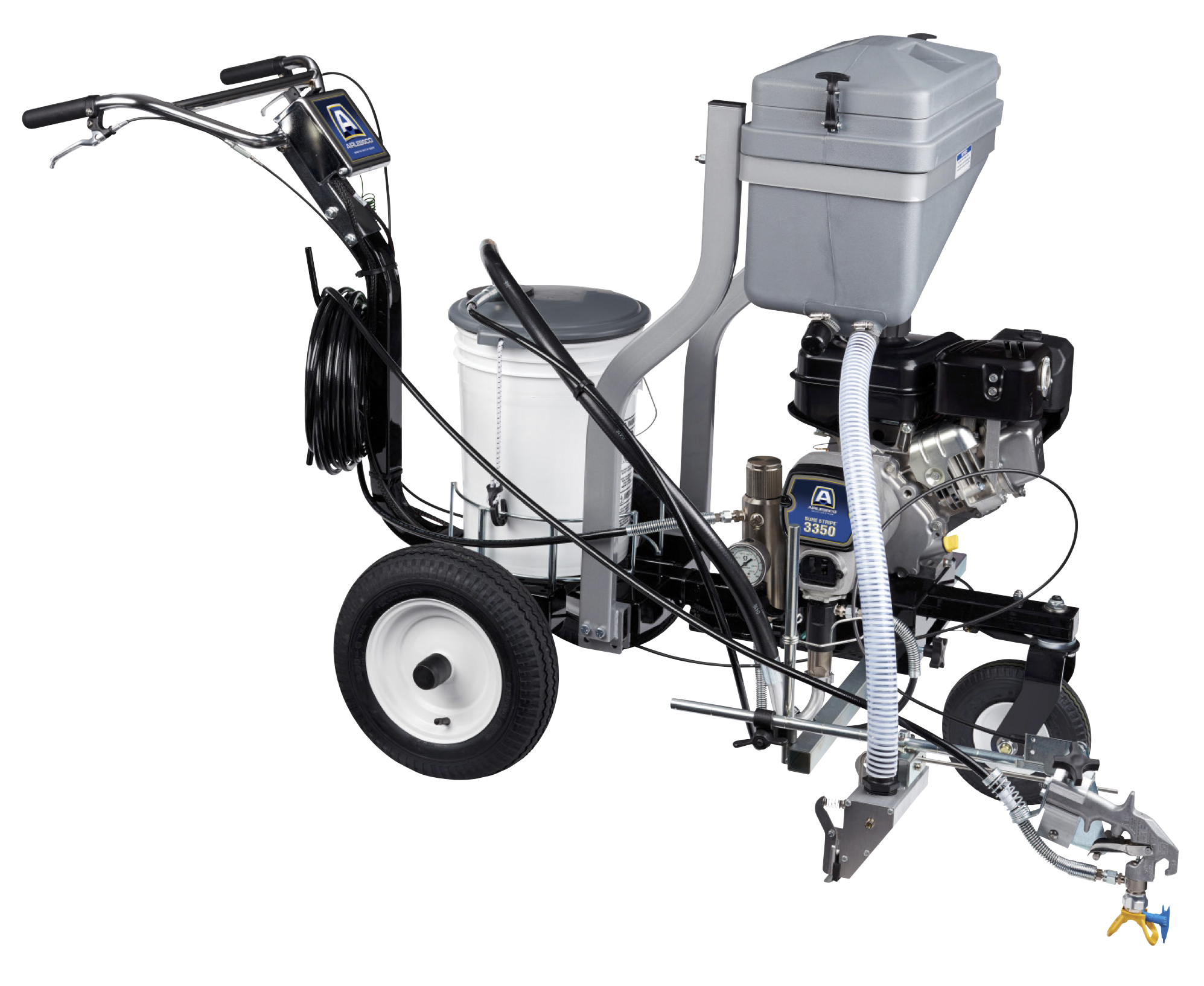

Sure Stripe Marking Machines The Sure Stripe marking machines are the ideal choice for any type of marking work. Whether it is used for lawns or asphalt, Sure Stripe is a reliable and accurate choice. In addition to the two standard models, there is also a self-propelled SP version. On the SP model, you can adjust speed manually or set a specific speed. Capacity (l / min): 2.8-4.7 l / min depending on model Max. performance height: 15 m Weight: 76-83 kg Engine: 5.5 PS Vangaurd Container volume: 55 l Included: Intake hose HD hose HD pistol Prolight 500 Tip protector Fine spray tip Watch video here Read datasheet here |  |
